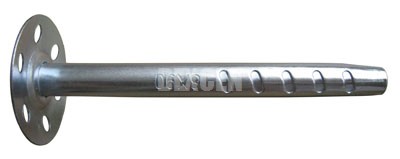

INSULATION FIXING |
|
|
![[产品图像]](images/fixing/detail/INSULATION BOARD ANCHORS.jpg)
![[产品图像]](images/fixing/INSULATION INSTALL.jpg)
| Catalog: | FIXING SYSTEM |
| Surface: | White zinc |
| Material: | Carbon steel, Stainless Steel |

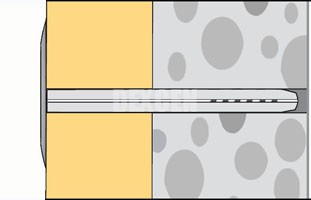

| Application | To secure self-supporting, pressure-resistant insulation material to concrete, stone, perforated brick, hollow concrete brick, aerated concrete, etc. |
Size of this product
| Size | Drill |
Anchor length |
Drillholdepth |
Insulation board Thickness |
| 8x50 | 8mm | 50mm | 60mm | 30mm |
| 8x60 | 8mm | 60mm | 70mm | 40mm |
| 8x80 | 8mm | 80mm | 80mm | 50mm |
| 8x90 | 8mm | 90mm | 90mm | 60mm |
| 8x110 | 8mm | 110mm | 110mm | 80mm |
| 8x140 | 8mm | 140mm | 140mm | 110mm |
| 8x150 | 8mm | 150mm | 150mm | 120mm |
| 8x170 | 8mm | 170mm | 170mm | 140mm |
| 8x200 | 8mm | 200mm | 200mm | 170mm |
